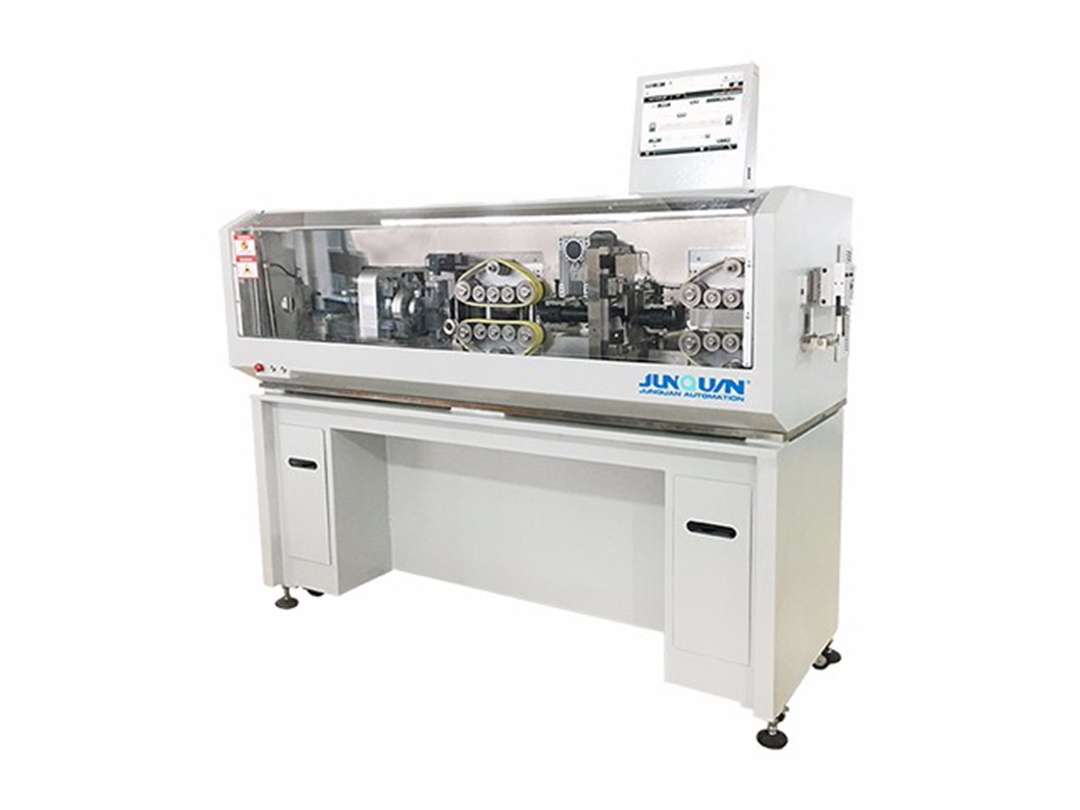

Automatic cable cutting and stripping machine ZDBX-40

ZDBX-40 adopts a modular controlled fully automatic cutting and stripping machine, which is suitable for processing single-core wires, multi-core cables and shielded cables with an outer diameter of less than 40mm.

1. Extensible module

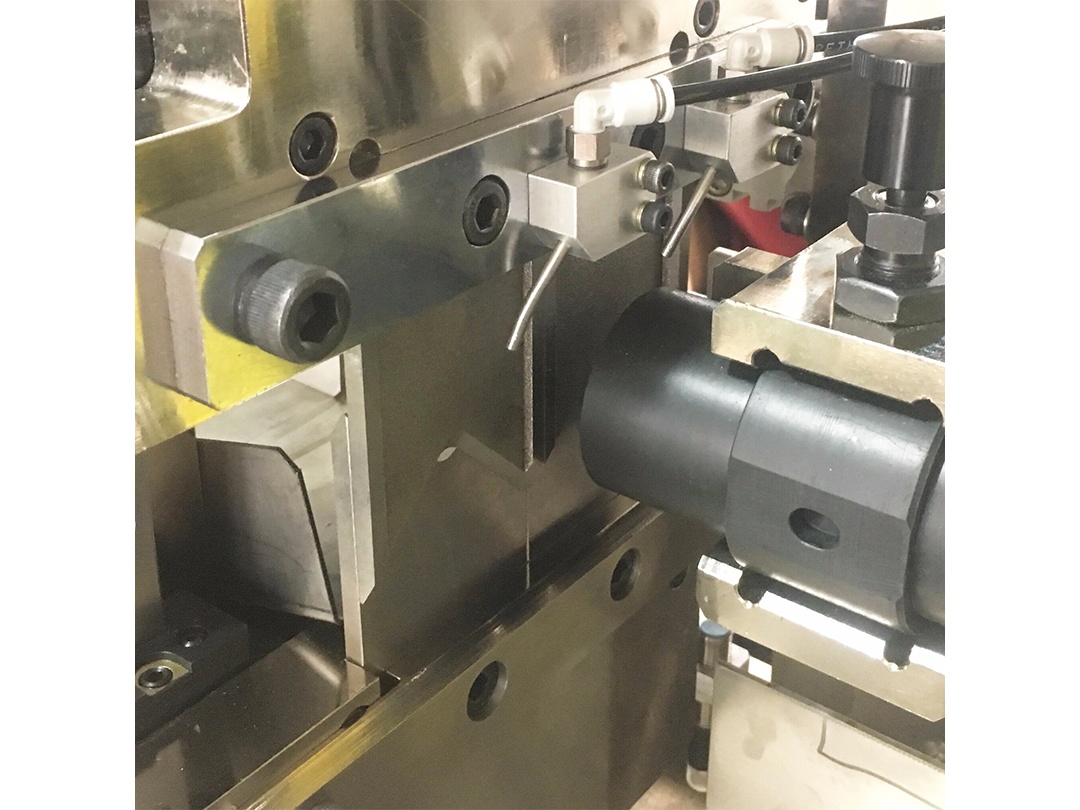

2. Quickly change the knife set

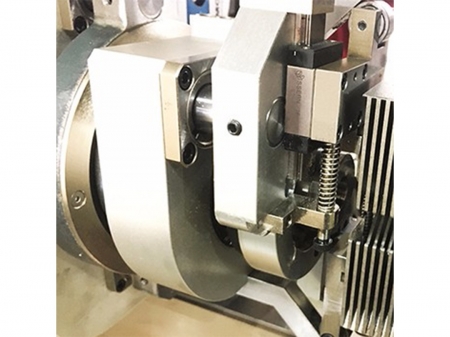

3. The high-precision rotary cutting device equipped with a center positioning system can accurately cut the shielding layer

4. Fully automatic self-locking/non-self-locking guide device can make the operation safer

5. Fast feeding speed and high peeling force

加工類型

Processing Type

新能源大線徑同軸電纜、多芯線。

最大電纜直徑

Max. Cable Diameter

40 mm,更大需要訂制。

最大電纜截面

Max. Cable Cross Section

≤120 mm2

剝皮長(zhǎng)度

Stripping Length Left / Right

< 999999 mm

退皮長(zhǎng)度

Max. Pull Off Length

左端Left Side:220mm 右端Right Side360 mm

最大送線速度

Max. Transport Speed

3 m/sec

刀    組

Blade Cartridges

快速轉(zhuǎn)換 quick changeable

接    口

Interfaces

局域網(wǎng), USB, RS 232(Ethernet, USB, RS 232)

電    源

Air Supply

220 V

氣    源

Dimensions

 6 bar

外形尺寸

Measurement

W1590×L 1030× H1365 mm

重    量

Weight

400kg
